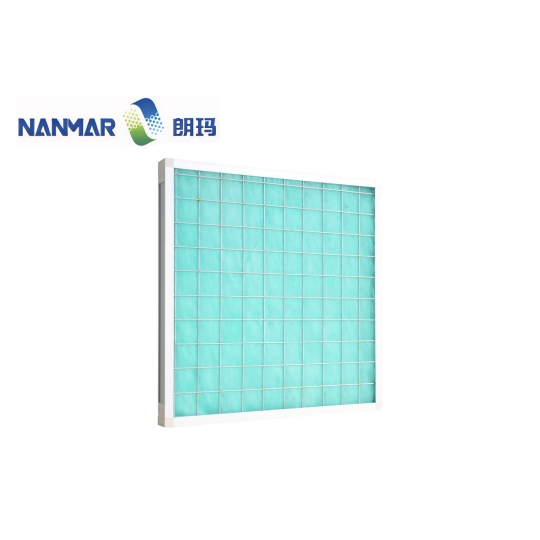

NPKW temperature resistant primary filter/Glass fiber filter/Guard plate filter
Suitable for fresh air and return air filtration in air systems, and pre-filtration of local high-efficiency filtration devices
1. The filtration efficiency for particles ≥5.0μm is 40% to 60%
2. It uses a special bulky high-throughput low-resistance polyester fiber cloth as the filter material, with a large dust holding capacity
3. There are galvanized steel plates, aluminum alloy frames, and stainless steel frames
4. It can withstand temperatures of 250℃ and above
1. The filtration efficiency for particles ≥5.0μm is 40% to 60%
2. It uses a special bulky high-throughput low-resistance polyester fiber cloth as the filter material, with a large dust holding capacity
3. There are galvanized steel plates, aluminum alloy frames, and stainless steel frames
4. It can withstand temperatures of 250℃ and above
Applicable to fresh air and return air filtration in air systems, and pre-filtration of local high-efficiency filtration devices
Technical parameters (common specifications)
| Model | Dimensions | Rated air volume (m³/h) |
Initial pressure drop | Filter area (m2) |
||
| Width × height × thickness (mm) | Standard | High Air Volume | Standard | High Air Volume | ||
| NPKW-500×500×25 | 500×500×25 | 1200 | 2400 | 20 | 45 | 0.25 |
| NPKW-500×500×20 | 500×500×20 | 1200 | 2400 | |||
| NPKW-500×500×15 | 500×500×15 | 1200 |
2400 |
|||
1. If there are any changes in specifications or structures, the latest data provided by our company shall prevail.
2. Our company accepts orders for products that do not meet the specifications listed above.
