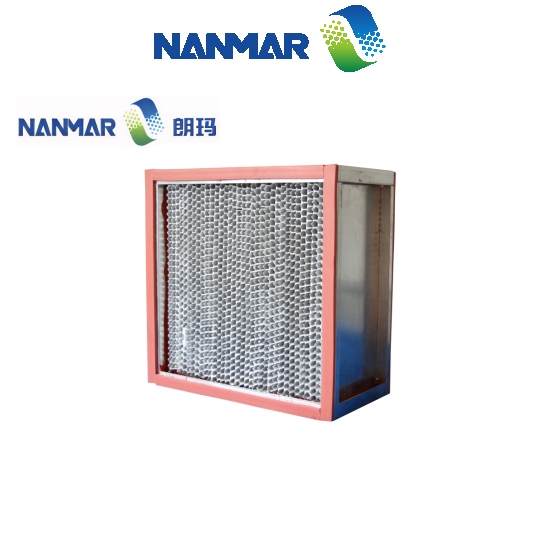

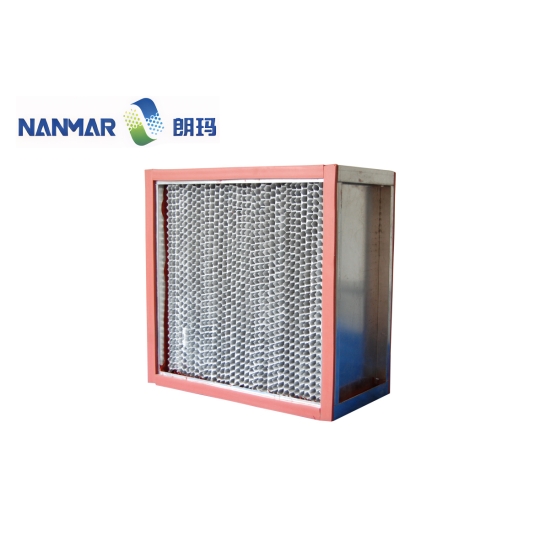

NGKW high temperature air filter
Features:
1. Various efficiency specifications from H10 to H14 to meet different requirements
2. Stainless steel frame with special heat-resistant sealing material, temperature resistant to 2500C and 3200C
3. Special folding equipment for folding
4. Special glass fiber filter paper as filter material
5. Special aluminum foil spacer
6. Each filter is treated with anti-volatile treatment and strictly tested
Application:
Mainly used in ultra-clean ovens, ultra-clean cleaning machines, chemical industry and other equipment and systems that require high-temperature air purification
Technical parameters (common specifications)
| Model | Dimensions | Filter area (㎡) |
Rated air volume(m³/h) | Initial pressure drop(Pa) | |||||
| W×H×T(mm) | standard | High air volume | standard | High air volume | H10 | H12 | H13 | H14 | |
| NGKW320 | 320×320×220 | 4.1 | 6.1 | 350 | 525 | ≤160 | ≤200 | ≤235 | ≤255 |
| NGKW484/10 | 484×484×220 | 9.6 | 14.4 | 1000 | 1500 | ||||
| NGKW484/15 | 726×484×220 | 14.6 | 21.9 | 1500 | 2250 | ||||
| NGKW484/20 | 968×484×220 | 19.5 | 29.2 | 2000 | 3000 | ||||
| NGKW630/05 | 315×630×220 | 8.1 | 12.1 | 750 | 1200 | ||||
| NGKW630/10 | 630×630×220 | 16.5 | 24.7 | 1500 | 2250 | ||||
| NGKW630/15 | 945×630×220 | 24.9 | 37.3 | 2200 | 3300 | ||||
| NGKW630/20 | 1260×630×220 | 33.4 | 50.1 | 3000 | 4500 | ||||
| NGKW610/03 | 305×305×150 | 2.4 | 3.6 | 250 | 375 | ||||
| NGKW610/05 | 305×610×150 | 5 | 7.5 | 500 | 750 | ||||
| NGKW610/10 | 610×610×150 | 10.2 | 15.3 | 1000 | 1500 | ||||
| NGKW610/15 | 915×610×150 | 15.4 | 23.1 | 1500 | 2250 | ||||
| NGKW610/20 | 1220×610×150 | 20.6 | 30.9 | 2000 | 3000 | ||||
| NGKW610/05X | 305×610×292 | 10.1 | 15.1 | 1000 | 1500 | ||||
| NGKW610/10X | 610×610×292 | 20.9 | 31.3 | 2000 | 3000 | ||||
1. If there are any changes in specifications or structures, the latest data provided by our company shall prevail.
2. Our company accepts orders for products that do not meet the specifications listed above.
