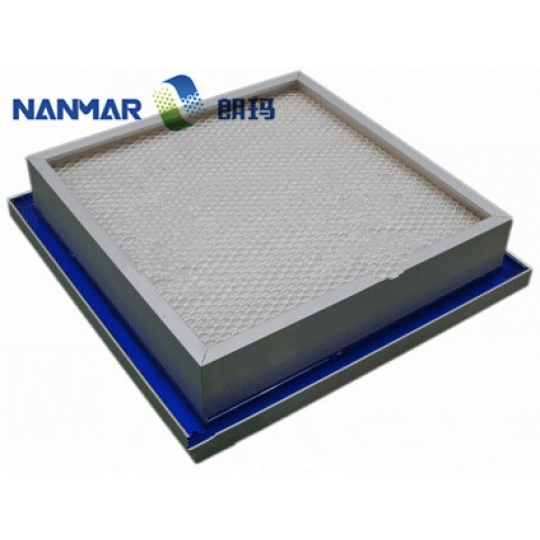

NMG Ultra High Efficiency Liquid Tank Filter (ULPA)

Views:
5

Air Filters

Mainly used in electronics, medicine, nuclear energy industry, clean rooms, laminar flow equipment, workbenches and other places requiring ultra-high cleanliness

Detail

Features:
1. The filtration efficiency of particles ≥0.3um is above 99.9995%
2. Ultra-fine glass fiber, high efficiency, low pressure loss
3. Chemical corrosion resistance, microorganisms are not easy to breed
4. Each filter is strictly tested
5. International standard size specifications are adopted 6. Can be customized according to specific user requirements

Application:
Mainly used in electronics, medicine, nuclear energy industry, clean rooms, laminar flow equipment, workbenches and other occasions requiring ultra-high cleanliness

Technical parameters (common specifications)

Serial number	Model	Dimensions	Filter area	Rated air volume	Initial pressure drop
Serial number	Model	W×H×D(mm)	㎡	m³/h	Pa
	NMG610/03-70L	305×305×70	2	200	≤250
2	NMG610/05-70L	305×610×70	4.3	400
3	NMG610/10-70L	610×610×70	9.5	800
4	NMG610/15-7OL	915×610×70	14.7	1200
5	NMG610/20-70L	1220×610×70	19.8	1600
6	NMG610/03-93L	305×305×93	2.7	250
7	NMG610/05-93L	305×610×93	5.9	500
8	NMG610/10-93L	610×610×93	13	1000
9	NMG610/15-93L	915×610×93	20	1500
10	NMG610/20-93L	1220×610×93	27	2000
11	NMG610/03-117L	305×305×117	3.4	320
12	NMG610/05-117L	305×610×117	7.5	640
13	NMG610/10-117L	610×610×117	16.4	1280
14	NMG610/15-117L	915×610×117	25.4	1920
15	NMG610/20-117L	1220×610×117	34.1	2560
16	NMG610/03-104Y	305×305×104	3.4	320
17	NMG610/05-104Y	305×610×104	6.8	640
18	NMG610/10-104Y	610×610×104	13.9	1280
19	NMG610/15-104Y	915×610×104	20.9	1920
20	NMG610/20-104Y	1220×610×104	28	2560
21	NMG610/03-135F	305×305×135	3.6	320
22	NMG610/05-135F	305×610×135	7.4	650
23	NMG610/10-135F	610×610×135	14.7	1300
24	NMG610/15-135F	915×610×135	22	2000
25	NMG610/20-135F	1220×610×135	29.4	2600
Notes: 1. If there are any changes in specifications or structures, the latest data provided by our company shall prevail 2. The "heart" shape in the specifications is the side tank, and the "Y" shape is the top tank filter 3. The "F" shape is a knife-edge filter, used for tank sealing
