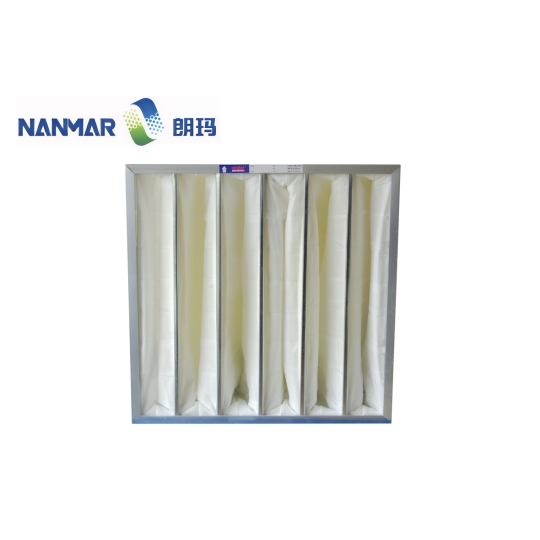

NBG non-woven bag air filter

Views:
10

Air Filters

Mainly used in the electronics, pharmaceutical industry, clean rooms, laminar flow equipment and other places requiring ultra-high cleanliness

Detail

Features:
1. Filtration efficiency levels G3-F8 are available
2. Made of polyester fiber, it is made in a non-woven, multi-directional, and gradient needle-rolling method according to the thickness and density of the fiber line diameter. It has the characteristics of high air permeability, low pressure loss, and high dust collection capacity
3. It can be equipped with galvanized frame, aluminum alloy frame, plastic frame or stainless steel frame
Application:
Mainly used in the electronics, pharmaceutical industry, clean rooms, laminar flow equipment and other occasions requiring ultra-high cleanliness

Technical Parameters:

Efficiency	Size W-H-D	Pockets	375FPM	375FPM	375FPM		375FPM	Media aera Sq.F1
Efficiency	Size W-H-D	Pockets	CFM	CFM	CFM	PD-wg	CFM	Media aera Sq.F1
90-95%	24’24’36’	8	1500	2000	2500	0.45	3000	104
	24’24’36’	6	1500	2000	2500	0.58	3000	80
	24’24’15’	6	1500	2000	2500	0.75	3000	43
	24’24’15’	6	1500	2000	2500	0.86	3000	33
80-85%	24’24’36’	8	1500	2000	2500	0.37	3000	104
	24’24’36’	6	1500	2000	2500	0.48	3000	80
	24’24’15’	8	1500	2000	2500	0.73	3000	43
	24’24’15’	6	1500	2000	2500	0.79	3000	33
60-65%	24’24’36’	8	1500	2000	2500	0.26	3000	104
	24’24’36’	6	1500	2000	2500	0.31	3000	80
	24’24’15’	8	1500	2000	2500	0.58	3000	43
	24’24’15’	6	1500	2000	2500	0.62	3000	33
40-45%	24’24’22’	8	1500	2000	2500	0.21	3000	64
	24’24’22’	6	1500	2000	2500	0.27	3000	48
	24’24’15’	8	1500	2000	2500	0.31	3000	43
	24’24’15’	6	1500	2000	2500	0.34	3000	33
30-35%	24’24’22’	8	1500	2000	2500	0.19	3000	64
	24’24’22’	6	1500	2000	2500	0.22	3000	48
	24’24’15’	8	1500	2000	2500	0.29	3000	43
	24’24’15’	6	1500	2000	2500	0.32	3000	33
1. If there are any changes in specifications or structures, the latest data provided by our company shall prevail. 2. Our company accepts orders for filter products that are not specified in the table.
