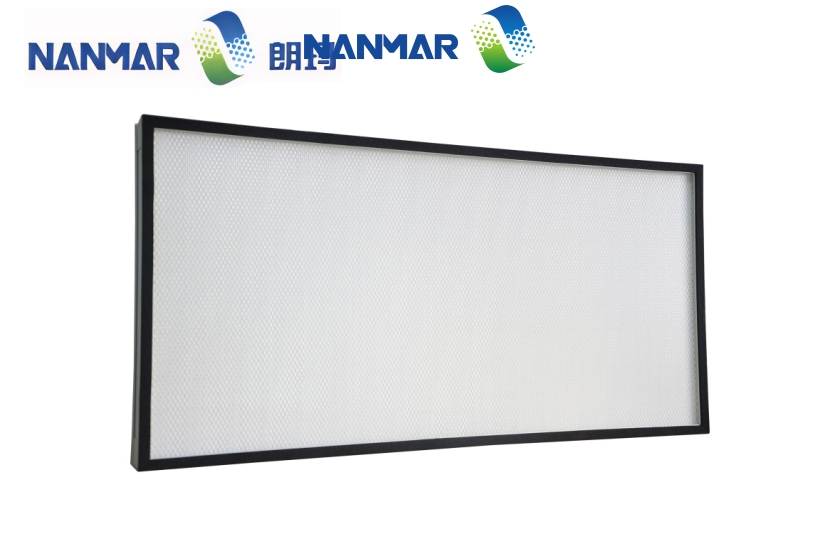

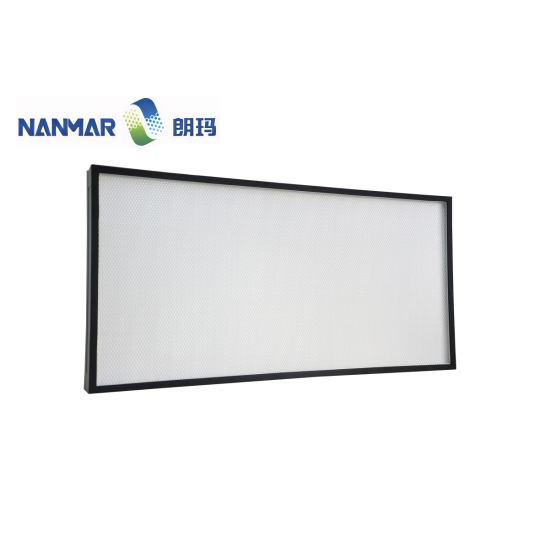

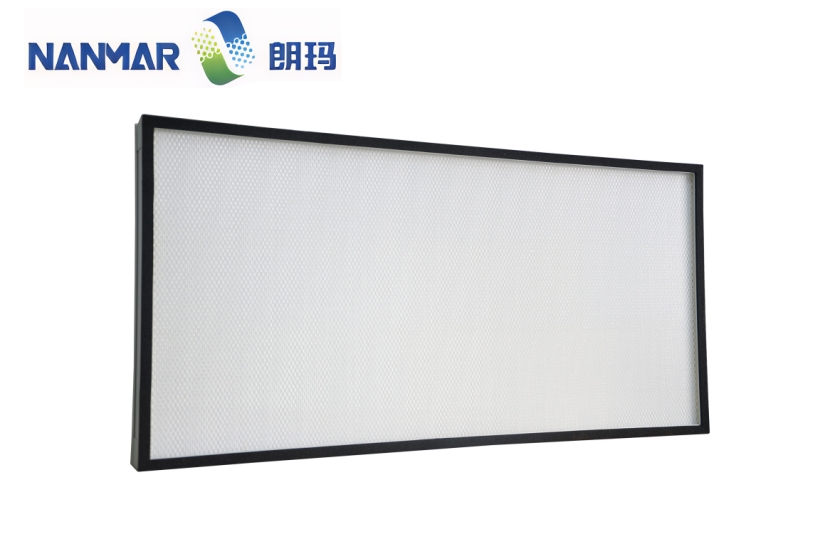

NMH non-partition high efficiency air filter (HEPA)

Views:
1

Air Filters

Mainly used in electronics, medicine, nuclear energy industry, clean rooms, laminar flow equipment, workbenches and other places requiring high cleanliness

Detail

Features:
1. Filtration efficiency H14, the filtration efficiency for particles ≥0.3μm is above 99.995%
2. Filtration efficiency H13, the filtration efficiency for particles ≥0.3μm is above 99.97%
3. Ultra-fine glass fiber, high efficiency, low pressure loss
4. Chemical corrosion resistance, microorganisms are not easy to breed
5. Each filter is strictly tested
6. Adopt international standard size specifications
7. Can be customized according to user's specific requirements

Application:

Mainly used in electronics, medicine, nuclear energy industry, clean rooms, laminar flow equipment, workbenches and other places requiring high cleanliness.

Technical parameters (common specifications)

Model	Dimensions	Filter area （㎡）	Rated air volume (m³/h)	Rated wind speed（m/s)	Initial pressure drop (Pa)
	Dimensions
	WidthHeightThickness(mm)
	WidthHeightThickness(mm)
NMH610/03-50	305×305×50	1.6	150	0.5	≤190
NMH610/05-50	305×610×50	3.3	300
NMH610/10-50	610×610×50	6.7	600
NMH610/15-50	915×610×50	10.1	900
NMH610/20-50	1220×610×50	13.5	1200
NMH610/03-70	305×305×70	2.7	250	0.75
NMH610/05-70	305×610×70	5.5	500
NMH610/10-70	610×610×70	11.3	1000
NMH610/15-70	915×610×70	17	1500
NMH610/20-70	1220×610×70	22.7	2000
NMH610/03-90	305×305×90	3.7	320	1.0
NMH610/05-90	305×610×90	7.5	650
NMH610/10-90	610×610×90	15.4	1300
NMH610/15-90	915×610×90	23.2	2000
NMH610/20-90	1220×610×90	31.1	2600
Notes: 1. In case of changes in specifications or structure, the latest data provided by our company shall prevail 2. Our company accepts orders for products that do not meet the specifications listed above
