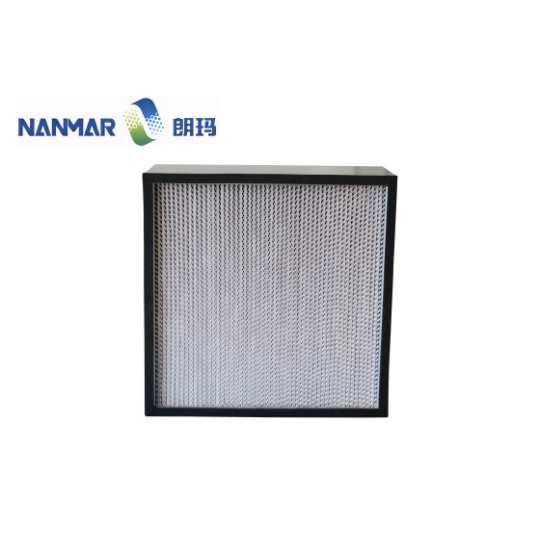

NGH air filter with baffle

Views:
12

Air Filters

Mainly used in the electronics, pharmaceutical industry, clean rooms, laminar flow equipment and other places requiring ultra-high cleanliness

Detail

Features:
1. High efficiency H14 filtration efficiency: filtration efficiency for particles ≥0.3μm is above 99.995%
2. High efficiency H13 filtration efficiency: filtration efficiency for particles ≥0.3μm is above 99.97%
3. Sub-high efficiency H10 filtration efficiency: filtration efficiency for particles ≥0.5μm is above 95%
4. Medium efficiency F8 filtration efficiency: filtration efficiency for particles ≥1.0μm is above 80%
5. Special glass fiber filter paper as filter material
6. Special aluminum foil or paper spacer
7. Each filter is strictly tested
8. Available in wood, aluminum alloy, steel plate and stainless steel frames
9. Can be customized according to specific user requirements

Application:
Mainly used in electronics, pharmaceutical industries, clean rooms, laminar flow equipment and other occasions requiring ultra-high cleanliness.

Technical parameters (common specifications)

Model	Dimensions	Filter area（㎡）		Rated air volume (m³/h)		Initial pressure drop (Pa)
	Dimensions	Filter area（㎡）		Rated air volume (m³/h)		Initial pressure drop (Pa)
	WidthHeightThickness(mm)	Standard	High air volume	Standard	High air volume	F8	H10	H13	H14
	WidthHeightThickness(mm)	Standard	High air volume	Standard	High air volume	F8	H10	H13	H14
NGH230	230×230×110	0.8	1.4	110	180	≤85	≤175	≤235	≤255
NGH320	320×320×220	4.1	6.1	350	525
NGH484/10	484×484×220	9.6	14.4	1000	1500
NGH484/15	726×484×220	14.6	21.9	1500	2250
NGH484/20	968×484×220	19.5	29.2	2000	3000
NGH630/05	315×630×220	8.1	12.1	750	1200
NGH630/10	630×630×220	16.5	24.7	1500	2250
NGH630/15	945×630×220	24.9	37.3	2200	3300
NGH630/20	1260×630×220	33.4	50.1	3000	4500
NGH610/03	305×305×150	2.4	3.6	250	375
NGH610/05	305×610×150	5	7.5	500	750
NGH610/10	610×610×150	10.2	15.3	1000	1500
NGH610/15	915×610×150	15.4	23.1	1500	2250
NGH610/20	1220×610×150	20.6	30.9	2000	3000
NGH610/05X	305×610×292	10.1	15.1	1000	1500
NGH610/10X	610×610×292	20.9	31.3	2000	3000
1. If there are any changes in specifications or structures, the latest data provided by our company shall prevail. 2. Our company accepts orders for products that do not meet the specifications listed above.
