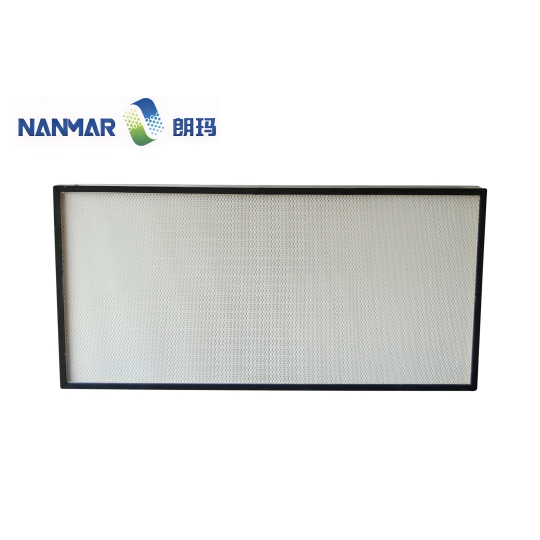

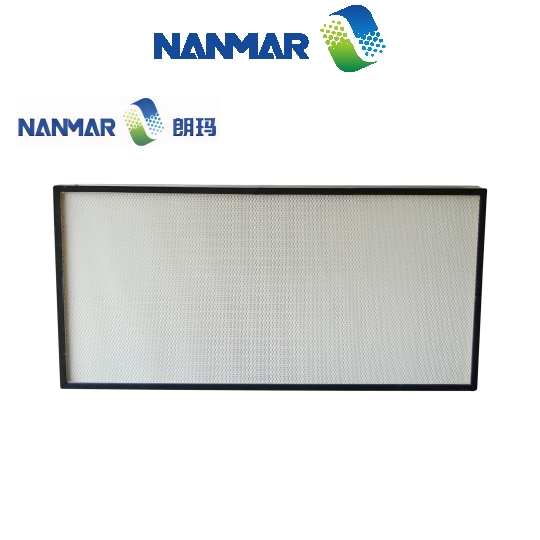

Non-partitioned high efficiency air filter

Views:
1

Air Filters

Mainly used for terminal filtration in places requiring high cleanliness, such as electronics, pharmaceutical industry and hospitals

Detail

Features:
1. Filtration efficiency H14, the filtration efficiency for particles ≥0.3μm is above 99.995%
2. Filtration efficiency H13, the filtration efficiency for particles ≥0.3μm is above 99.97%
3. Ultra-fine glass fiber, high efficiency, low pressure loss
4. Chemical corrosion resistance, microorganisms are not easy to breed
5. Each filter is strictly tested
6. Adopt international standard size specifications
7. Can be customized according to user's specific requirements

Application:
Mainly used in electronics, medicine, nuclear energy industry, clean room, laminar flow equipment, workbench and other occasions requiring high cleanliness

Technical parameters (common specifications)

Model	Dimensions	Filter area	Rated air volume	Rated wind speed	Initial pressure drop
Model	Width × height × thickness (mm)	(m2)	(m3/h)	(m/s)	(Pa)
NMH610/03-50	305×305×50	1.6	150	0.5	≤190
NMH610/05-50	305×610×50	3.3	300
NMH610/10-50	610×610×50	6.7	600
NMH610/15-50	915×610×50	10.1	900
NMH610/20-50	1220×610×50	13.5	1200
NMH610/03-70	305×305×70	2.7	250	0.75
NMH610/05-70	305×610×70	5.5	500
NMH610/10-70	610×610×70	11.3	1000
NMH610/15-70	915×610×70	17	1500
NMH610/20-70	1220×610×70	22.7	2000
NMH610/03-90	305×305×90	3.7	320	1
NMH610/05-90	305×610×90	7.5	650
NMH610/10-90	610×610×90	15.4	1300
NMH610/15-90	915×610×90	23.2	2000
NMH610/20-90	1220×610×90	31.1	2600
1.If there are any changes in specifications or structures, the latest data provided by our company shall prevail. 2.Our company accepts orders for filter products that are not specified in the table.
