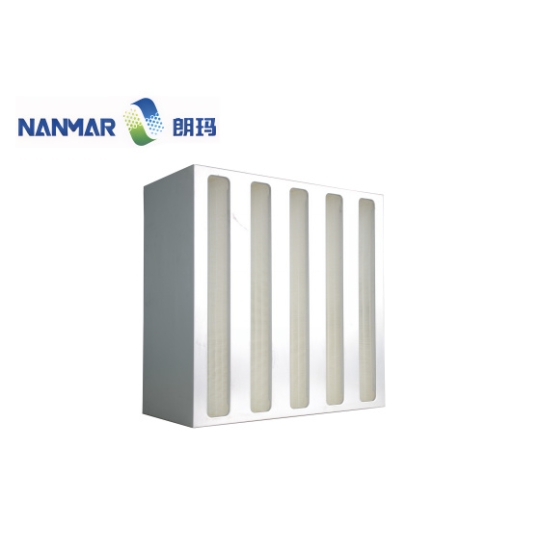

NMV V-type large air volume air filter without partition

Views:
3

Air Filters

It uses special large-block high-throughput, low-resistance polyester fiber cloth as the filter material, with a large dust holding capacity.

Detail

Features:
1. Filtration efficiency: high efficiency H12, H13, H14, sub-high efficiency H10, H11, medium efficiency F6, F7, F8, F9
2. The chip without partition is folded by spray glue using a computer-controlled fully automatic folding machine system
3. Special glass fiber filter paper or polypropylene as filter material
4. The frame is made of galvanized steel plate or plastic
5. Each filter is strictly tested
6. Adopt international standard size specifications
7. Can be customized according to user's specific requirements

Application:
Mainly used for air conditioning purification equipment with large air volume, such as intermediate filtration and terminal filtration of air conditioning box system.

Model	Dimensions	Structure	Frame	Filtration area(㎡)	Rated air volume (m³/h)	Initial pressure drop (Pa)
	Dimensions					Initial pressure drop (Pa)
	Width × height × thickness (mm)					F8	H10	H13	H14
NMV1212-2VF25	287×287×292	287 single convex 25mm	2V plastic frame/metal frame	4.2	800	110	180	260	300
NMV1220-2VF25	287×490×292			7.7	1200
NMV1224-2VF25	287×592×292			9.4	1600
NMV2012-3VF25	490×287×292	490 single convex 25mm	3V plastic frame/metal frame	6.4	1100
NMV2020-3VF25	490×490×292			11.6	1900
NMV2024-3VF25	490×592×292			14.4	2400
NMV2412-3VF20/25	592×287×292	592 single convex 20/25mm	3V plastic frame/metal frame	6.4	1100
NMV2420-3VF20/25	592×490×292			11.6	1900
NMV2424-3VF20/25	592×592×292			14.4	2400
NMV2412-4VF20/25	592×287×292		4V plastic frame/metal frame	8.4	1600
NMV2420-4VF20/25	592×490×292			15.4	2500
NMV2424-4VF20/25	592×592×292			18.8	3200

Notes:
1. In case of changes in specifications or structure, the latest data provided by our company shall prevail
2. Our company accepts orders for products that do not meet the specifications listed above
