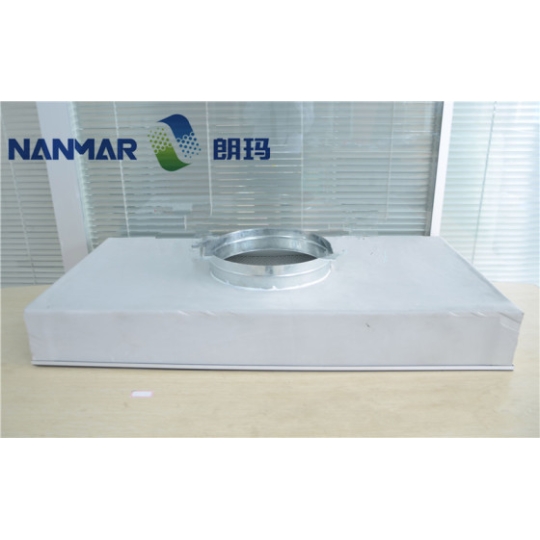

NMUD Disposable High Efficiency Air Filter Box

Views:
2

Air Filters

Used for terminal filtration of air supply systems in high-cleanliness workshops and clean rooms, effectively ensuring air flow speed and preventing eddy currents

Detail

Features:
1. The filtration efficiency of particles ≥0.3μm is above 99.99%
2. The box is made of high-quality galvanized steel plate, anodized aluminum alloy profile or stainless steel plate, with a fireproof insulation layer on the outside
3. It uses a non-partitioned folding chip, and the filter material uses ultra-fine glass fiber filter paper, which has low resistance, large air volume, and small space
4. Compact structure, low investment cost, easy installation and maintenance
5. The air outlet is equipped with high-quality aluminum plate mesh or stainless steel plate mesh, which is beautiful and generous
6. Each filter box is strictly tested

Application:
It is used for terminal filtration of air supply systems in high-cleanliness workshops and clean rooms, effectively ensuring air flow speed and preventing vortexes

Specification:

Model	Box size	Air inlet pipe diameter	Initial pressure drop (Pa) @ air volume (m³/h)
Model	(mm)	(mm)	Initial pressure drop (Pa) @ air volume (m³/h)
HDUD-570	570×570×150	Φ250 Φ300 Φ350	100@500	125@620	150@780	180@870
HDUD-600	600×600×150		100@550	125@690	150@870	180@970
HDUD-610	610×610×150		100@570	125@715	150@900	180@1000
HDUD-1170	1170×570×150		100@1030	125@1290	150@1630	180@1800
HDUD-1200	1200×600×150		100@1100	125@1390	150@1760	180@1950
HDUD-1210	1210×600×150		100@1120	125@1400	150@1780	180@1970
HDUD-1220	1220×610×150		100@1150	125@1440	150@1820	180@2020
Notes: 1. In case of changes in specifications or structure, the latest data provided by our company shall prevail 2. Our company accepts orders for products that do not meet the specifications listed above
