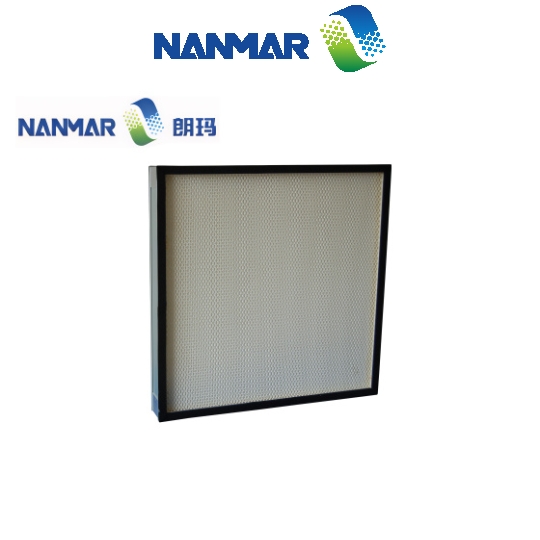

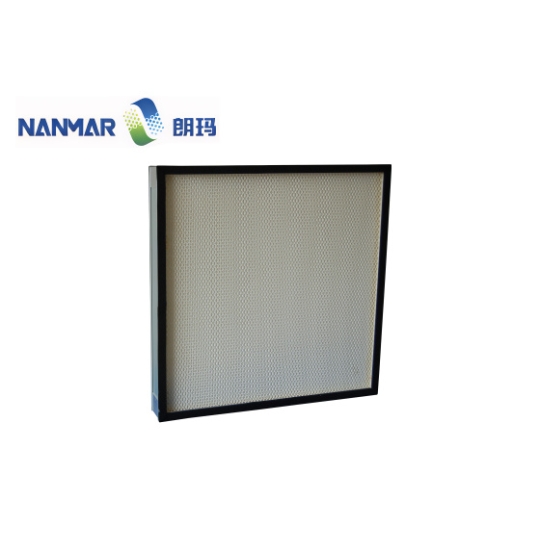

NMU Ultra High Efficiency Partition Air Filter (ULPA)
Features:
1. The filtration efficiency of particles ≥0.3um is above 99.9995%
2. Ultra-fine glass fiber, high efficiency, low pressure loss
3. Chemical corrosion resistance, microorganisms are not easy to breed
4. Each filter is strictly tested
5. International standard size specifications are adopted
6. Can be customized according to specific user requirements
Application:
Mainly used in electronics, medicine, nuclear energy industry, clean rooms, laminar flow equipment, workbenches and other occasions requiring ultra-high cleanliness
Technical parameters (common specifications)
| Model | Dimensions | Filtration area | Rated air volume | Initial pressure drop |
| Width × length × thickness (mm) | (㎡) | (m³/h) | (Pa) | |
| NMU610/03-70 | 305×305×70 | 2.7 | 250 | ≤250 |
| NMU610/05-70 | 305×610×70 | 5.5 | 500 | |
| NMU610/10-70 | 610×610x70 | 11.3 | 1000 | |
| NMU610/15-70 | 915×610x70 | 17 | 1500 | |
| NMU610/20-70 | 1220x610×70 | 22.7 | 2000 | |
| NMU610/03-90 | 305×305×90 | 3.7 | 320 | |
| NMU610/05-90 | 305×610×90 | 7.5 | 650 | |
| NMU610/10-90 | 610×610x90 | 15.4 | 1300 | |
| NMU610/15-90 | 915×610x90 | 23.2 | 2000 | |
| NMU610/20-90 | 1220×610x90 | 31.1 | 2600 |
