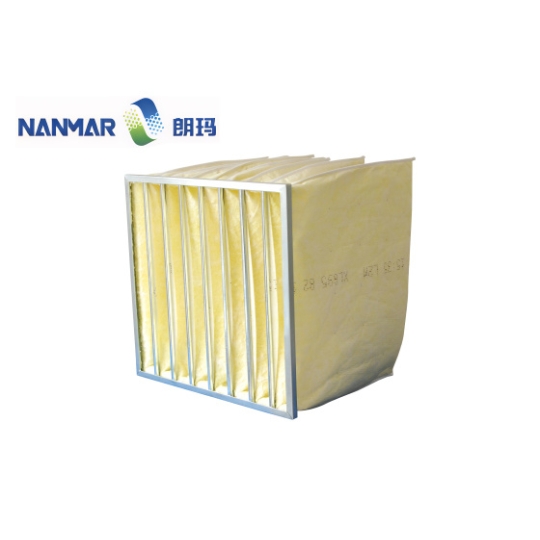

NBK Fiberglass Bag Air Filter

Views:
1

Air Filters

Mainly used in general air purification systems in electronics, biopharmaceuticals, mechanical instruments, petrochemical and light industries

Detail

Features:
1. Filtration efficiency levels F5~F8 are available
2. The filter material is made of extremely fine special glass fiber, reinforced with non-woven fabric, and has a large dust holding capacity
3. Fire rating: UL-900 Class 2
4. Can be equipped with galvanized frame, aluminum alloy frame or stainless steel frame
Application:
Mainly used in general air purification systems in electronics, biopharmaceuticals, mechanical instruments, petrochemical light industry and other industries

Technical parameters (common specifications)

1. If there are any changes in specifications or structures, the latest data provided by our company shall prevail.
2. Our company accepts orders for products that do not meet the specifications listed above.

Model	Dimensions	Number of bags	Filter area(㎡)	Initial pressure drop of each efficiency specification (Pa) @ rated air volume (m³/h)
Model	W×H×D(mm)	Number of bags	Filter area(㎡)	F5(40-45%)	F6(60-65%)	F7(80-85%)	F8(90-95%)
NBK-24×24x36-10P	592×592×915	10	12		87@5100	110@4250	125@4250
NBK-24×24×30-10P	592×592×762		10	-	85@5100	78@3400	105@3400
NBK-24×24×22-10P	592×592×558		7.4	-	80@3400	120@3400	130@3400
NBK-24×24×15-10P	592×592×381		5.2	-	87@2550	115@2550	150@2550
NBK-24×24x36-8P	592x592×915	8	9.8	-	77@4250	88@3400	110@3400
NBK-24×24x30-8p	592×592×762		8.2	-	82@4250	96@3400	125@3400
NBK-24×24×22-8P	592×592x558		6.1	-	110@3400	105@2550	125@2550
NBK-24×24x15-8P	592x592×381		4.2	-	102@2550	95@1700	140@1700
NBK-24×24×36-6P	592×592×915	6	7.6	-	75@3400	110@3400	130@3400
NBK-24×24×30-6P	592×592×762		6.4	44@3400	72@3400	120@3400	115@2550
NBK-24×24×22-6P	592×592×558		4.7	53@3400	87@2550	130@2550	120@1700
NBK-24×24×15-6P	592×592×381		3.3	65@3400	82@1700	125@1700	140@1250
NBK-20×24x36-5P	492×592×915	5	6.3	-	-	-	130@3000
NBK-20×24×30-5P	492×592×762		5.3	44@2800	70@3000	115@3000	125@2550
NBK-20×24×22-5p	492×592×558		3.9	53@2800	107@3000	140@2550	115@1500
NBK-20×24x15-5P	492×592×381		2.7	65@2800	102@2100	130@1500	110@1000
NBK-20×20×36-5P	492×492×915	5	5.4	-	-	-	130@2550
NBK-20×20×30-5p	492×492×762		4.5	44@2300	70@2550	115@2550	125@2100
NBK-20×20×22-5P	492×492×558		3.3	53@2300	107@2550	140@2100	115@1250
NBK-20×20×15-5P	492×492×381		2.3	65@2300	102@1700	130@1250	110@850
NBK-12×24×36-3P	287×592×915	3	3.7	-	-	-	145@1700
NBK-12×24x30-3p	287×592×762		3.1	44@1700	77@1700	125@1700	125@1250
NBK-12×24×22-3P	287×592×558		2.3	53@1700	87@1250	135@1250	105@850
NBK-12×24×15-3P	287×592×381		1.6	65@1700	82@850	125@850	-
