Vertical flow clean bench
Clean workbench is a local air purification equipment that can provide a dust-free and sterile working environment and is suitable for fields with special requirements for cleanliness. It is mainly composed of a box, a fan, a high-efficiency filter and electrical control, and creates a local clean operating environment through unidirectional air purification.
1. Vertical Flow Clean Bench & Product Overview
A vertical flow clean bench is a type of clean bench that provides a localized dust-free and sterile working environment through air purification. Its use effectively improves process conditions, enhances product quality, and increases yield. The vertical flow clean bench works by drawing air into a pre-filter via a fan, then through a static pressure chamber to a high-efficiency filter, and finally delivering the filtered air out in a vertical airflow pattern. This ensures the operating area meets a specific cleanliness level, guaranteeing the required cleanliness for production.
Features:
1. Cleanliness CLASS100, conforming to ISO1466-1 international standard
2. Employs an adjustable airflow, low-noise fan system to ensure ideal airflow in the working area.
3. The cabinet is made of electrostatically powder-coated steel plate with a bright and smooth finish; the work surface is made of 304 stainless steel.
.png)

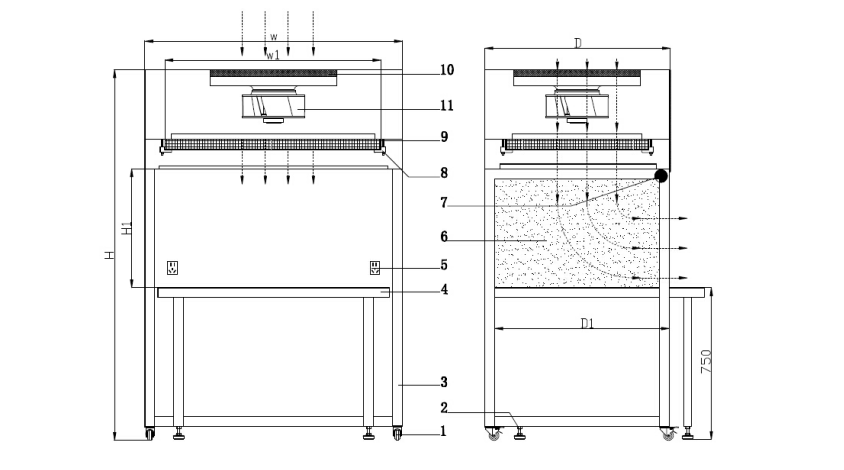

Vertical flow clean bench specifications:
1. Casters with brakes
2. Footrests
3. Support frame
4. Stainless steel worktop
5. Sockets
6. Glass
7. Fluorescent light
8. Control switch
9. HEPA filter
10. Pre-filter
11. Fan

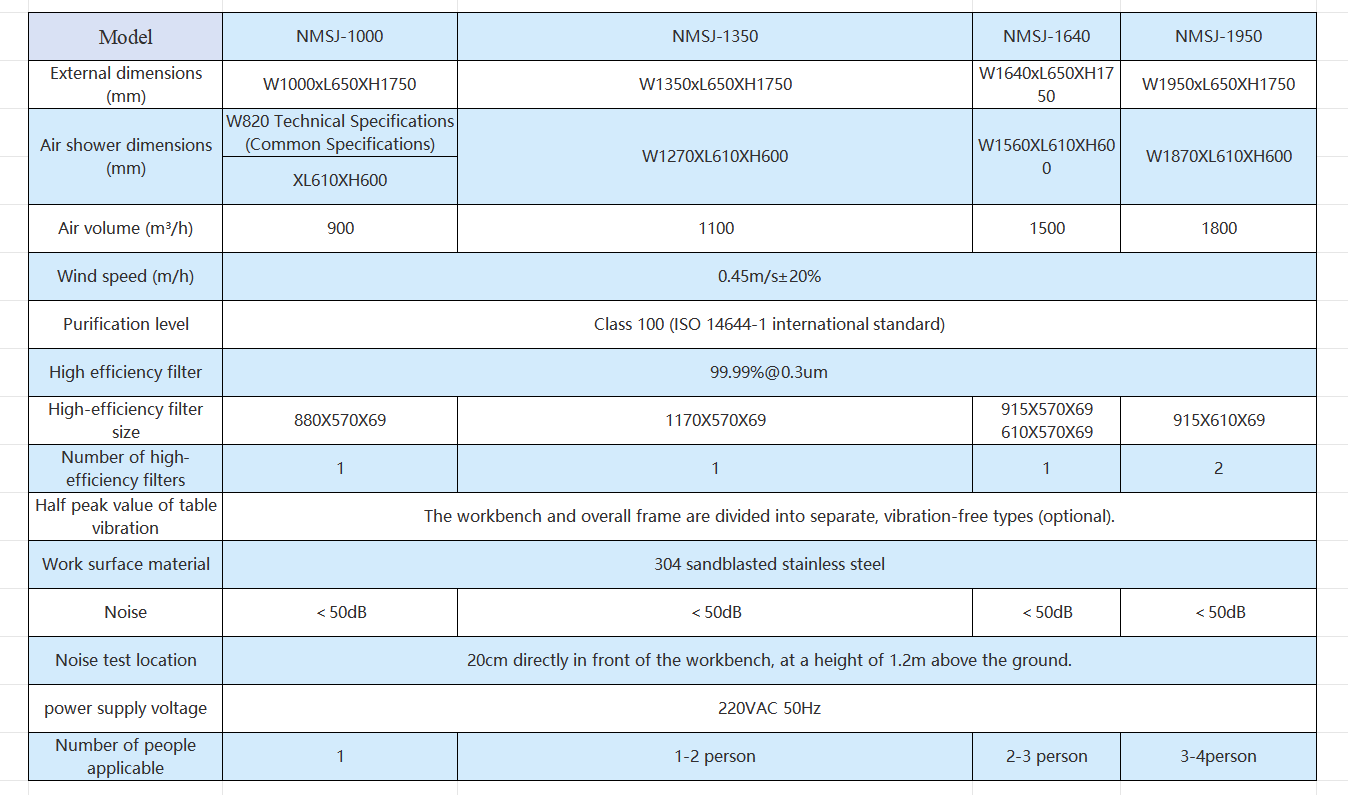

Technical parameters (common specifications)support customization
.png)
1. In case of changes to specifications or structure, the latest data provided by our company shall prevail.
2. Our company accepts orders for products with specifications not listed in the table.
