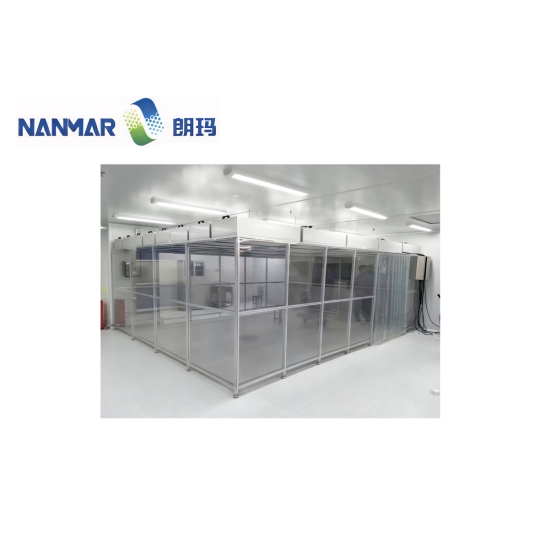

Clean booth

Product Overview:

A clean booth (simple cleanroom) is a simple cleanroom designed for quick and easy construction. Clean booths offer various cleanliness levels and spatial configurations, customizable to meet specific needs. Their main features include ease of use, high flexibility, easy installation, short construction period, and portability. Clean booths can also be added to specific areas within a standard cleanroom where higher cleanliness is required, reducing costs. A clean booth is an air purification device that provides a localized high-cleanliness environment. It mainly consists of an air filtration unit, a pre-filter, a damping layer, and lighting fixtures. This product can be suspended or floor-mounted.

Features:

1. Modular design for easy installation and significantly shortened delivery time;

2. Easy to move; suitable for building small clean areas;

3. Modular structure for easy upgrading of cleanliness levels, strong expandability, and high reusability;

4. Compared to a laminar flow hood, it offers more usable internal space; compared to traditional cleanrooms, it is lower in cost, faster to construct, and has no height restrictions.

Working Principle:

The fan draws air in from the top of the FFU (Fan Filter Unit), filters it through a pre-filter and a high-efficiency filter, and then delivers the filtered clean air at a uniform velocity of 0.45 m/s ± 20% throughout the entire outlet surface into the cleanroom. This forms a uniform flow layer, ensuring a vertical unidirectional airflow and guaranteeing the required cleanliness level within the work area.

Compact and easy to use. It can be used individually or multiple units can be connected to form a strip-shaped clean area.

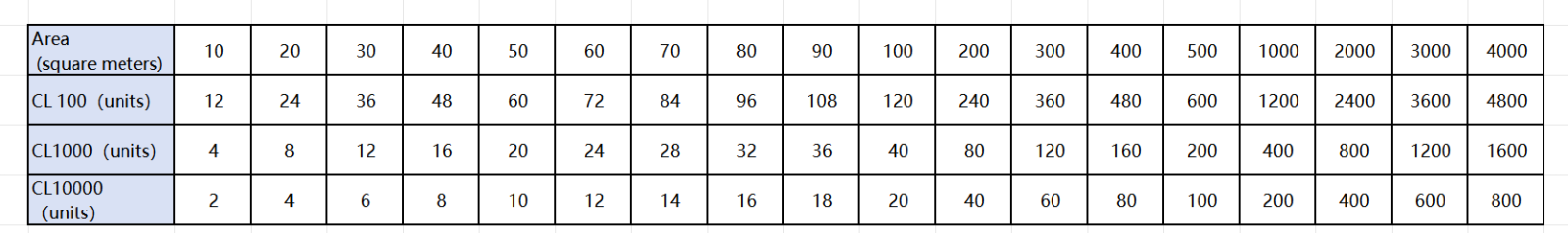

FFU Dosage Reference Table:

Note:

1. Class 100 Cleanliness: Fully equipped with FFUs;

2. Class 1000 Cleanliness Conversion Formula:

[X cubic meters * (60~100)/h] ÷ FFU airflow

3. Class 10,000 Cleanliness Conversion Formula:

[X cubic meters * (30~60)/h] ÷ FFU airflow

**This data is an approximate usage and is for reference only. Actual usage will depend on the specific site conditions.
